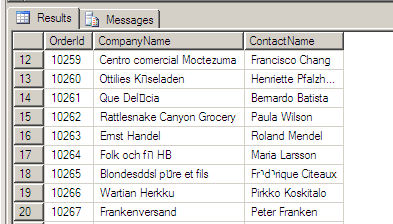

Well, this image really excites me. It excites me because I got this after integration FileHelpers into Rhino ETL. This image is the result of an ETL script that joined a file against a table, did some additional processing on it and push it to a table in a third database.

I must say that FileHelpers has made this ridiculously easy to do.  All I have left to do is figure out how to test such a thing effectively.

For reference, here is the complete script:

[DelimitedRecord("\t")]
class Customers:
      CustomerID as string
      CompanyName as string
      ContactName as string
      ContactTitle as string
      Address as string
      City as string
      Country as string



connection(
      "DestinationDB",
      ConnectionType: SqlConnection,
      ConnectionString: "Data Source=localhost;Initial Catalog=ETL_Test; Integrated Security=SSPI;"
      )

connection(
      "Northwind",
      ConnectionType: SqlConnection,
      ConnectionString: "Data Source=localhost;Initial Catalog=Northwind; Integrated Security=SSPI;"
      )



source CustomersFile:
      execute:
            for customer in Read(typeof(Customers)).From("""Files\CustomersTab.txt"""):
                  SendRow( Row(
                        CustomerId: customer.CustomerID,
                        CompanyName: customer.CompanyName,
                        ContactName: customer.ContactName
                        ))



source OrdersFromDatabase, Connection="Northwind":
      Command: "SELECT * FROM Orders"



join CustomersAndOrders:
      if Left.CustomerID == Right.CustomerID:
            Row.OrderID = Right.OrderID
            Row.CompanyName = Left.CompanyName
            Row.ContactName = Left.ContactName



 destination Final, Connection="DestinationDB":
      Command: "INSERT INTO OrdersWareHousing VALUES(@OrderID, @CompanyName,@ContactName)"



pipeline OrdersWareHouse:
      CustomersFile >> CustomersAndOrders.Left
      OrdersFromDatabase >> CustomersAndOrders.Right
      CustomersAndOrders >> Final



 target default:
      Execute("OrdersWareHouse")
