Complex nested structures in RavenDB

time to read 6 min | 1072 words

This started out as a question in the mailing list. Consider the following (highly simplified) model:

   public class Building
   {
       public string Name { get; set; }
       public List<Floor> Floors { get; set; }
   }

   public class Floor
   {
       public int Number { get; set; }
       public List<Apartment> Apartments { get; set; }
   }

   public class Apartment
   {
       public string ApartmentNumber { get; set; }
       public int SquareFeet { get; set; }
   }

And here you can see an actual document:

{
    "Name": "Corex's Building - Herzliya",
    "Floors": [
        {
            "Number": 1,
            "Apartments": [
                {
                    "ApartmentNumber": 102,
                    "SquareFeet": 260
                },
                {
                    "ApartmentNumber": 104,
                    "SquareFeet": 260
                },
                {
                    "ApartmentNumber": 107,
                    "SquareFeet": 460
                }
            ]
        },
        {
            "Number": 2,
            "Apartments": [
                {
                    "ApartmentNumber": 201,
                    "SquareFeet": 260
                },
                {
                    "ApartmentNumber": 203,
                    "SquareFeet": 660
                }
            ]
        }
    ]
}

Usually the user is working with the Building document. But every now an then, they need to show just a specific apartment.

Normally, I would tell them that they can just load the relevant document and extract the inner information on the client, that is very cheap to do. And that is still the recommendation. But I thought that I would use this opportunity to show off some features that don’t get their due exposure.

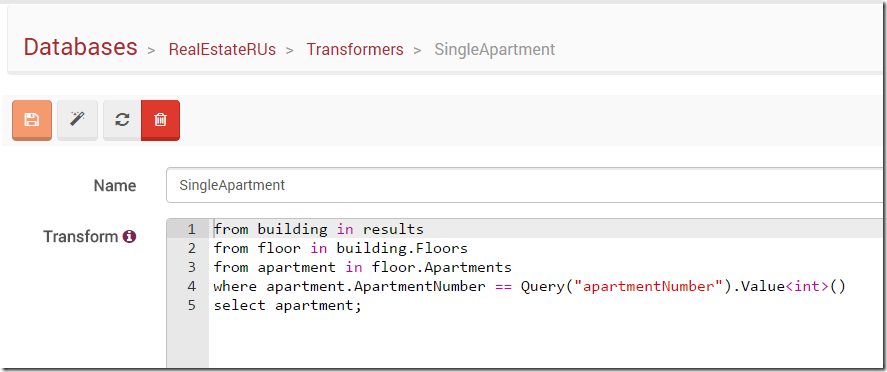

We then define the following index:


Note that we can use the Query() method to fetch the query specific parameter from the user. Then we just search the data for the relevant item.

From the client code, this will look like:

var q = session.Query<Building>()
    .Where(b =>/* some query for building */)
    .TransformWith<SingleApartment, Apartment>()
    .AddTransformerParameter("apartmentNumber", 201)
    .ToList();


var apartment = session.Load<SingleApartment, Apartment>("building/123",
        configuration => configuration.AddTransformerParameter("apartmentNumber", 102));

And that is all there is to it.
